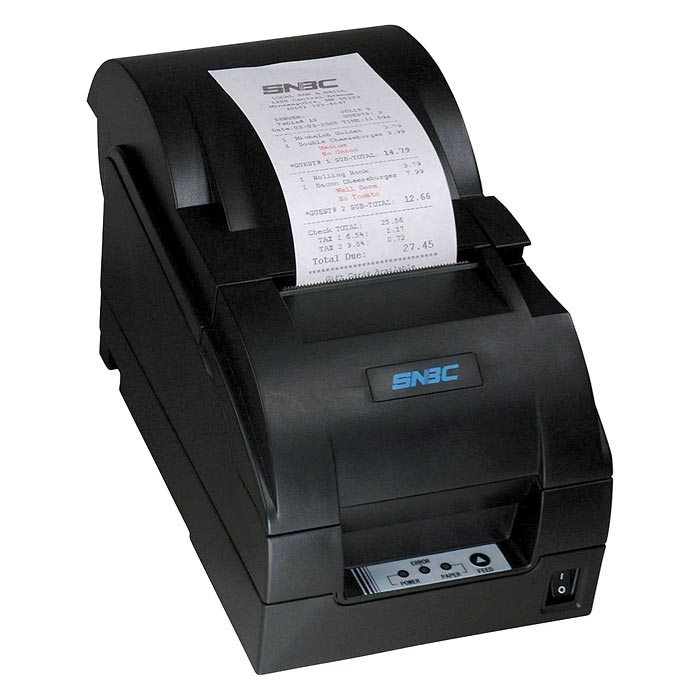

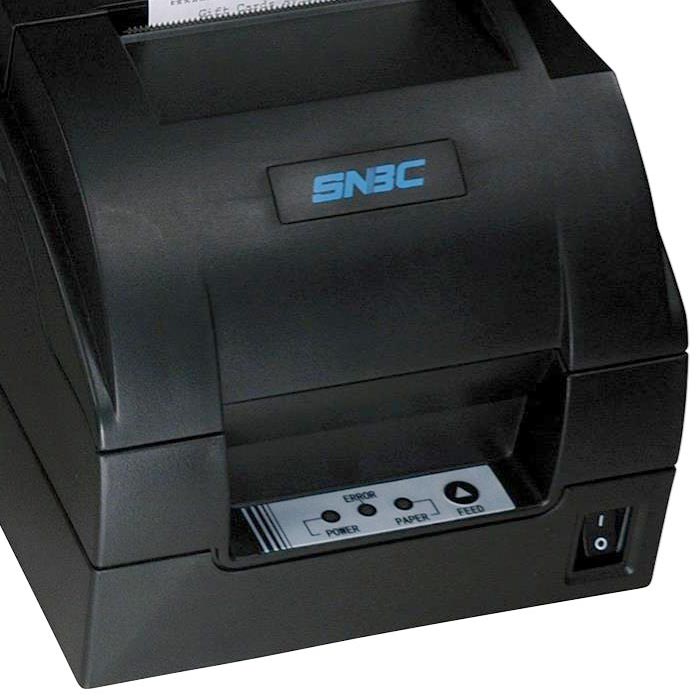

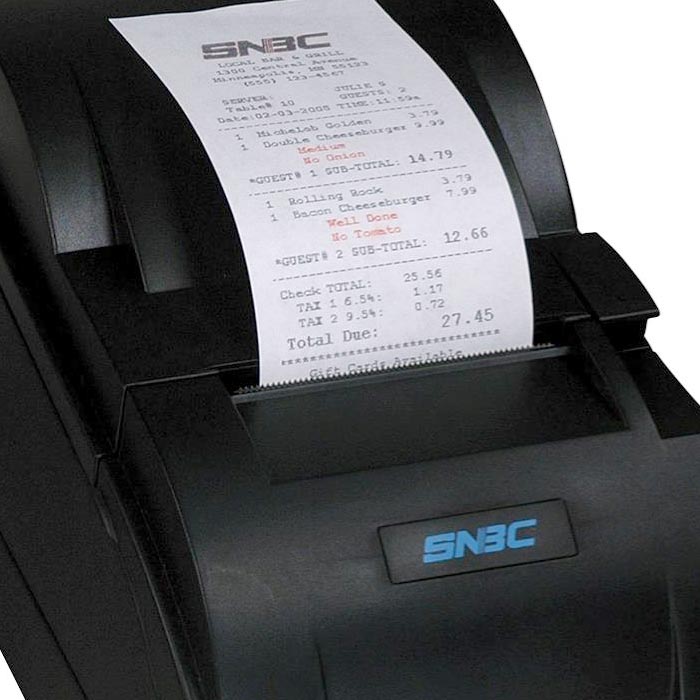

SNBC Printer BTP-M280A BLACK SERIAL – with Auto Cutter and Take-up
Impact Receipt Printer.
Description
The BTP-M280A produces either receipts or kitchen orders faster than other popular impact printers. Featuring trouble-free drop-and-print paper loading, it is adjustable to accommodate 76, 70, or 58mm paper rolls. Print is clear and precise, allowing you to print long-lasting receipts with coupons, rebates and specials. User defined graphic logos are easily downloaded with SNBC’s free utility software.
- Auto-Cutter and Paper Take-Up.
- Serial, Parallel, Ethernet and Wireless WiFi Interface Options.
- Two Color Print – Uses Industry Standard ERC-38 Ribbon Cartridge.
- Stores and Prints Logo Images.
- Extraordinary Reliability.
- Contains Everything Necessary in the Carton – Including Communications Cables.
Specifications
| Max Print Speed: | 4.7 Lines per Second / 19.6mm per Second |
| Printing Method: | Impact |
| Characters Per Line – Font A: Font B: |
33 / 35 40 / 42 |
| Characters Size – Font A: Font B: |
9 x 9 7 x 9 |
| Paper Roll Type – Width: Maximum Diameter: Paper Thickness: |
76 / 69.5 / 57.5mm ± 0.5mm 83mm 0.06mm ~ 0.085mm |
| Auto Paper Cutting Method: BTP-m280D Cutting Method: |
Auto-Cutter with Selectable Full or Partial Cut Manual Tear |
| Inking Supply: | ERC-38 Ribbon Catridge (Black/Red) |
| Reliability – MTBF: MCBF: Printhead Life: Cutter Life: |
180,000 Hours 18,000,000 Lines 150,000,000 Characters 1,500,000 Cuts |
| Character Set – Alphanumeric: International: Graphic: |
95 13 128 x 8 Page |
| Interpreter: | ESC/POS |
| Interface: | Serial / Parallel / Ethernet / USB / Wireless WiFi |
| Drivers – 32 bit: 32 and 64 bit: |
POSReady 2009 / 2000 Server / 2000 Prof. / XP Home Win 8 / Win 7 / Server 2008 / Server 2003 / XP Prof. / Vista |
| Drawer Port: | Up to 2 Drawers (+24VDC) / Supports Drawer Compulsion |
| Data Buffer – Rec. Buffer RAM: RAM Bitmap: Flash Bitmap: |
4 KB RAM 8 KB 128 KB |
| Power Supply: | AC 100 ~ 240 V, 50/60 Hz Adapter Included |
| Current/Power Usage: | 1.5A / 36W |
| Operating Temperature: | 40° ~ 114°F (5° ~ 45°C) |
| Operating Humidity: | 20% ~ 90% RH (Non-Condensing) |
| Dimensions / Shipping Weight – M280A: M280B: M280D: |
6-5/16”W x 6-5/8”H x 11-3/4”D / 10.10 lbs. 6-5/16”W x 5-11/16”H x 9-5/8”D / 9.50 lbs. 6-5/16”W x 5-11/16”H x 9-5/8”D / 9.50 lbs. |
| Safety and EMI: | FCC / RoHS |
