Sam4s Terminal SPT-7650 NCC Reflection POS Windows with SSD
Space Saving Highly Integrated POS Terminal
- Must also purchase NCC Software, Item # 703110-WIN
- NCC Software located below in Options and Accessories
Description

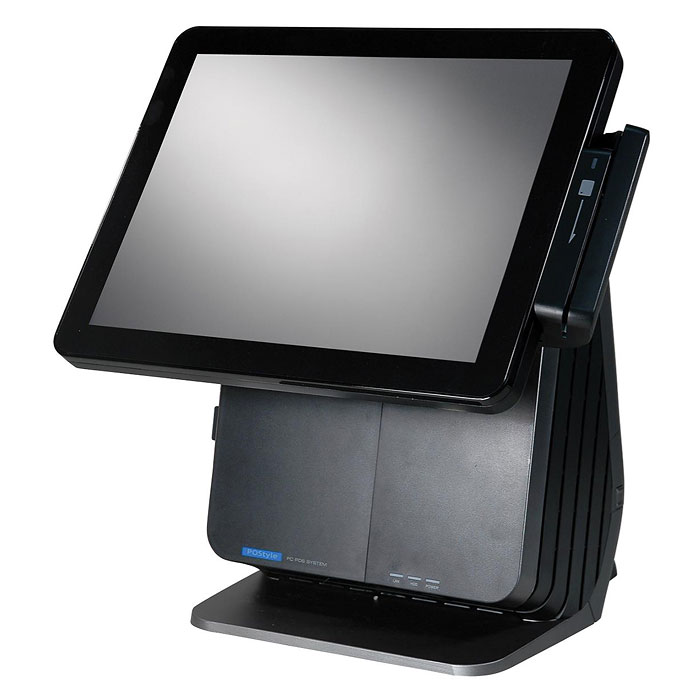

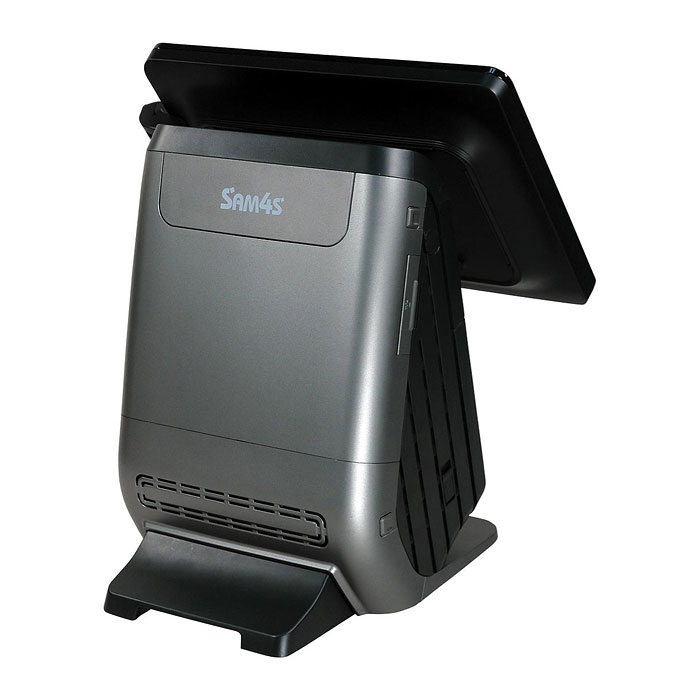

The fully integrated SAM4s SPT-7650 POS terminal features a true flat display and includes an integrated touch screen, card reader, power supply, thermal printer, and can be configured with an available integrated barcode scanner and fingerprint reader. With a footprint only 10½” wide by 12″ deep the SPT-7640 is ideal for POS applications where counter space is at a premium such as ticket offices and concessions.
- Intel® Celeron N3160 Quad Core 1.6GHz Fanless Processor.
- Projected Capacitive Touch (PCT) – PCT is Inherently Faster, More Reliable and Robust.
- Solid State Drive for Optimum Performance and Reliability.
- Standard Integrated Thermal Receipt Printer and MCR.
- Optional Integrated Barcode Scanner.
- Optional Integrated Digital Persona® Fingerprint Reader.
- Optional 2 Line by 20 Character VFD, 7″, 9.7″ or 15″ LCD Integrated Customer Displays.
- Optional WiFi Module.
- Integrated Power Supplies.
Specifiactions
| Processor: | Intel Celeron N3160 1.6GHz Fanless |
| Cores / Threads: | Quad Core |
| Cache Memory: | 2MB |
| Bus Speed: | 5 GT/s (GIga Transfers per Second) |
| Display LCD: | True Flat 15″ LCD with LED Backlighting |
| Resolution: | 1024 X 768 |
| Brightness | Adjustable up to 350 cd/m2 |
| Integrated Speaker: | Integrated 2 Watt Speaker |
| Touch Panel – Panel: Reliability: |
Projected Capacitive Touch Over 100Million Touches |
| MCR: | Integrated USB Interface Triple Track MCR Standard with Optional Encryption |
| Hard Drive: | 320GB 2.5″ HDD or 128GB 2.5″ SSD |
| RAM Memory: | 4GB SODIMM DDR3, Expandable (2 slots) |
| Video Memory: | Shared System Memory up to 512MB |
| Compact Flash Disk: | Optional SATA Adaptor |
| Serial Ports – 4 Extenal: 2 Internal: |
COM1, COM2, = DB9M with Pin 9 Voltage (0V/+5V/+12V) Selectable By BIOS COM3, COM4 = RJ45 Pin 1 Voltage (0V+5V/+12V) Selectable by JumperCOM5= RJ45 for Touchscreen / COM6 for VFD |
| Parallel Port: | One DB25F |
| USB Ports: | 4 USB3.0 Ports (on bottom), 2 USB2.0 (right side) |
| HDMI Port: | 1 HDMI Port |
| Cash Drawer Port: | RJ11, 12V DC or 24V DC Selectable By Jumper (Maximum 2 Drawers – Supports Open/Close) |
| Keyboard Port: | Not Applicable (Use USB Ports) |
| LAN Port: | RJ45 10/100/1000 Base-T (Giga LAN) RealTek RTL8111E |
| VGA Port: | One DB15F Display Port for Second LCD (Maximum Resolution 1024 X 768) |
| Audio Port: | One Line-In / One Line-Out |
| Mic Port: | One Mic-In |
| Power Supply – Terminal: Printer: |
75W, 12V/6.25A 100-240V 50-60Hz Integrated Power Adaptor 60W 24V/2.5A 100-240V 50-60Hz Integrated Power Adaptor |
| Current / Power Usage: | 0.28A / 31W (110V Idle Envvironme |
| Operating Temperature: | 32° F to 104° F |
| Compatible O/S: | POSReady 2009 / POSReady 7 / Windows Pro 7 / Windows Pro 8 / Windows 8 Industry Pro / Windows 10 Retail / Windows 10 Pro |
| Footprint: | 10-1/2″W x 12″D |
| Dimensions: | 14″W x 16-7/16″H x 12-3/16″D |
| Weight – Shipping: | 30 lbs. (Including Standard Printer and Card Reader) |
| Safety and EMI: | FCC, CE, RoHS |
