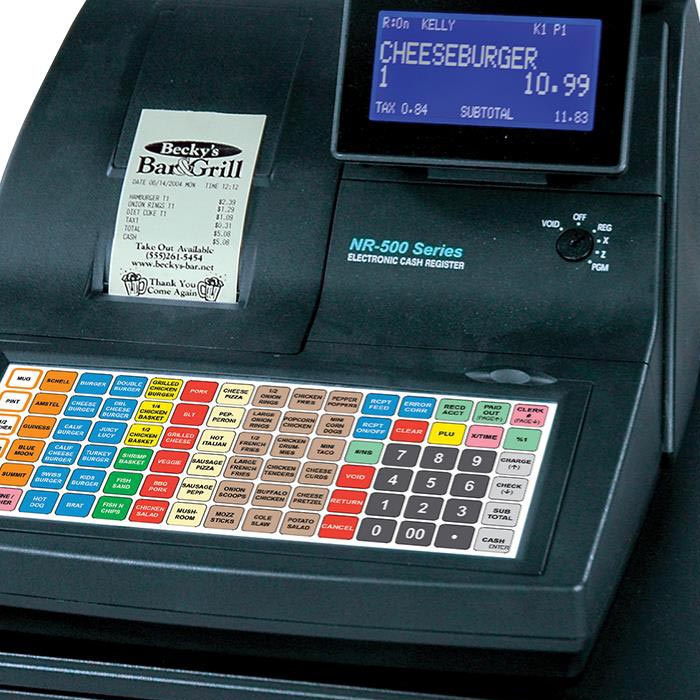

Sam4s NR-510B ECR – Flat Keyboard

Traditional Format Commercial Grade ECRs

Category: Cash Registers

Description

Traditional format commercial grade electronic cash register with an adjustable 192 x 64 graphic blue backlit LCD operator screen, fast reliable printer, electronic journal and an alpha-numeric backlit liquid crystal customer display.

Fast 22 Lines per Second Thermal Printing with Drop and Print Paper Loading.
Flat, Spill-Resistant Keyboard or Raised-Key Keyboard.
Two Line x 16 Character Backlit LCD Customer Turret Display.
Three Serial Ports and One USB Port for Memory or Scanner.
Supports Semi-Integrated Electronic Payment for Credit, Debit and Gift Card Transactions.

Specifications

Printer Type:	Direct Thermal, Drop-and-Print
Printer Stations	Single Station
Printer Speed:	15 Lines per Second
Paper Roll:	2-1/4″ (58mm)
Displays- Operator: Customer:	192 x 64 dot, Alpha-Numeric Graphic Blue Backlit LCD 2-Line x 16 Character Alpha-Numeric Blue Backlit LCD
Keyboard Capacity-	90 Keys / 75 Programmable Locations
Serial Ports:	Two RJ45; One DB9F
USB Ports:	One USB
Standard Cash Drawer:	5 Bill, 5 Coin with Drawer Lock and Two Media Slots
Dimensions:	16-1/2″W x 11-3/8″H x 16-1/8″D
Weight – Unit:	23.15 lbs.
Weight – Shipping:	28 lbs.
Power Requirements:	120 AC ± 10%, 60 Hz
Power Consumption:	Approx. 20 Watts
Operating Temperature:	32° ~ 113°F (0° ~ 45°C)
Humidity Range:	30% to 80% RH (Non-Condensing)
Memory Protection:	Full Charge for 24 Hours will Protect Memory for 90 Days
In the Carton:	Starter Paper Roll / Key Set / Power Switch Cover / Paper Take-Up Spool
