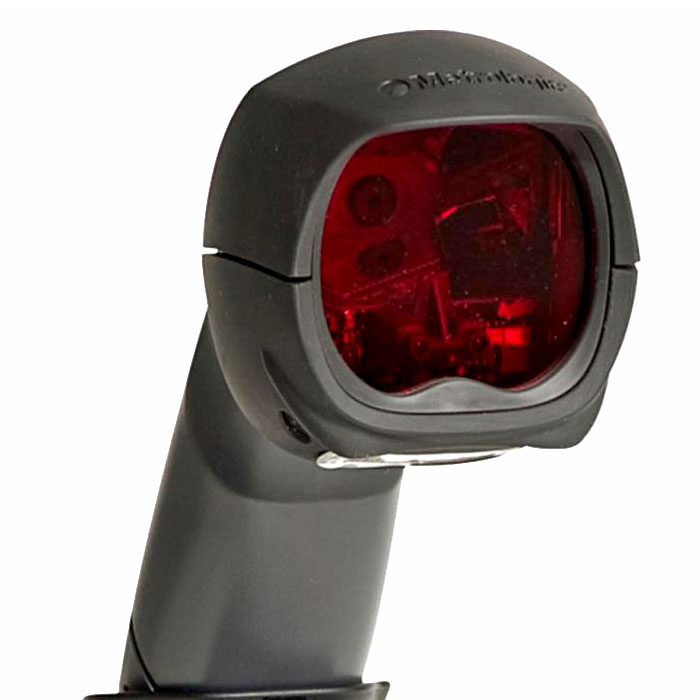

Honeywell – Fusion™ 3780 – Black Serial
Omnidirectional Laser Scannerr
Description
Fusion combines omnidirectional and single-line laser bar code scanning into a lightweight, ergonomic hand-held form factor. The 20-line scan pattern provides superior scanning over existing singleline hand-held scanners making Fusion ideal for medium-volume retailers including specialty stores, pharmacies, liquor stores, and convenience stores.
- Primary Omnidirectional Scan Pattern: Aggressive scanning in any orientation, increasing throughput.
- Secondary Single-Line Scan Pattern: With a push of a button, switch to a targeted single-line for menu scanning applications.
- Automatic In-Stand Detection: Hands-free operation for presentation scanning reduces operator fatigue.
- Sleep Mode With IR Wake Up: Multiple sleep modes reduce power consumption, extending life and lowering cost of operation.
- Optional Integration of RF EAS Antenna: Increases efficiency by simultaneously deactivating RF EAS tags and decoding bar codes.
Specifiactions
| Dimensions: | 189 mm x 65 mm x 73 mm (7.4˝ x 2.6˝ x 2.9˝) |
| Weight: | 195 g (6.9 oz) |
| Input Voltage: | 5 VDC ± 0.25 V |
| Operating Power: | 1.4 W (275 mA @ 5 V) |
| Standby Power: | 1.0 W (200 mA @ 5 V) |
| Host System Interfaces: | USB, RS232, Keyboard Wedge, IBM 46xx (RS485), OCIA |
| Operating Temperature: | -20°C to 40°C (-4°F to 104°F) |
| Storage Temperature: | -40°C to 60°C (-40°F to 140°F) |
| Humidity: | 5% to 95% relative humidity, non-condensing |
| Drop: | Designed to withstand multiple 1.5 m (5´) drop |
| Environmental Sealing: | Sealed to resist airborne particulate contaminants |
| Light Levels: | 4842 Lux |
| Scan Pattern: | Omnidirectional: 5 fields of 4 parallel lines; Button activated single line |
| Scan Speed: | Omnidirectional: 1,333 scan lines per second; Single line: 67 scan lines per second |
| Print Contrast: | 35% minimum reflectance difference |
| Pitch, Skew: | 60°, 60° |
| Decode Capability: | Reads standard 1D and GS1 DataBar symbologies |
