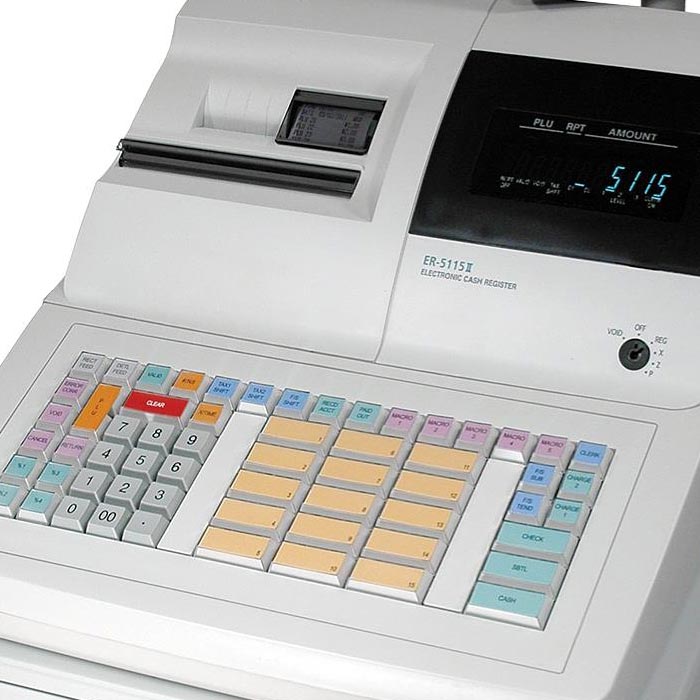

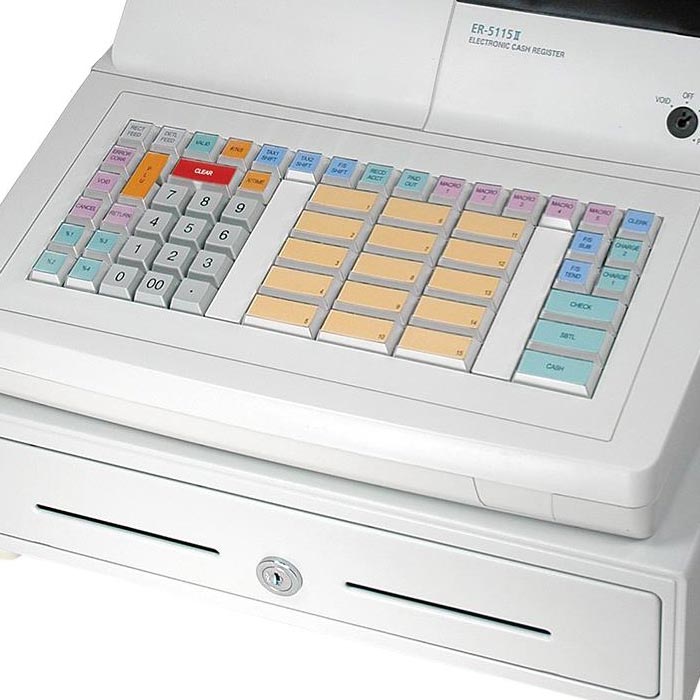

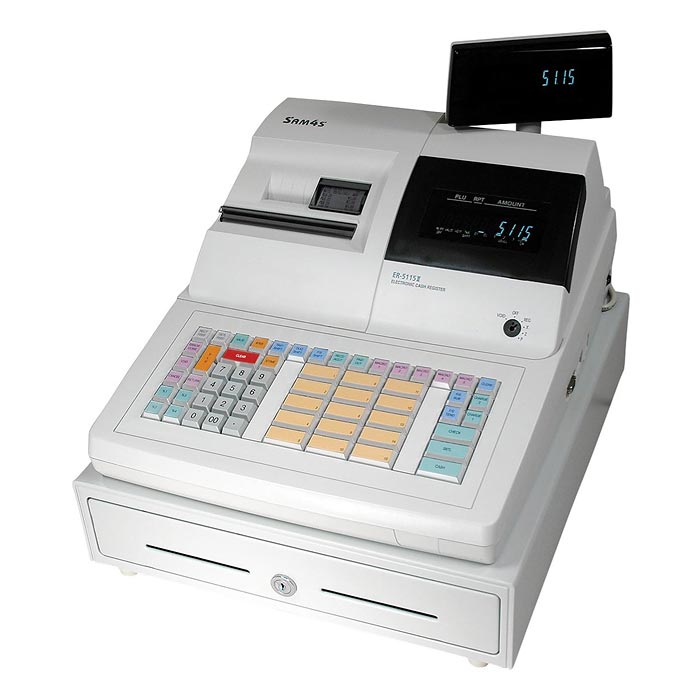

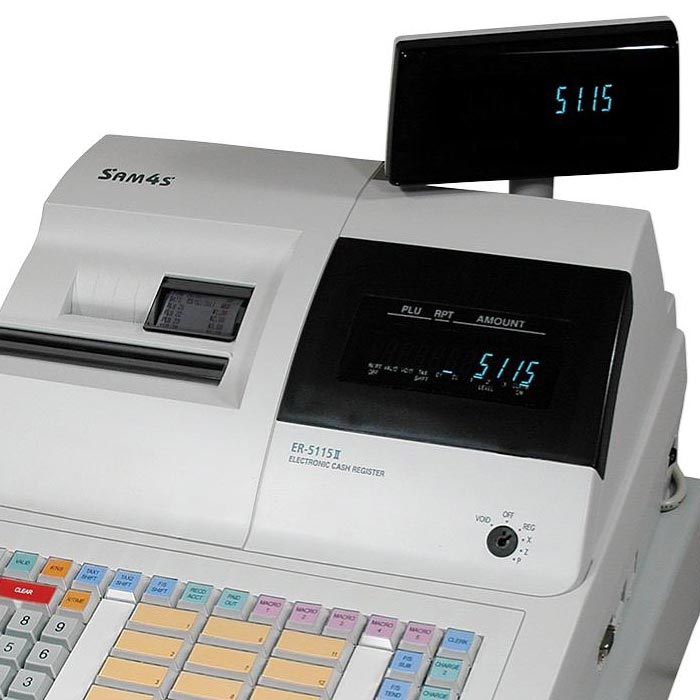

Sam4s ECR ER-5115II
An Affordable ECR Featuring Traditional Plain Paper Dot Matrix Printing with Validation
Description
Validation is a legacy cash register feature that can be used to improve security by providing proof of registration and an audit trail for important transaction documents. The ER-5115II allows validation to be enforced on selected operations such as paid outs, returns, voids, or payments. The ER-5115II uses lower cost plain paper and provides long-lasting easy-to-read receipt and sales journal records.
- Alpha-Numeric Receipt and Journal Printer with Single-Line Validation.
- 15 Programmable Keyboard PLUs, Expandable to 40.
- 1000 Open or Preset Price Look-Ups (PLUs).
- Three Menu Levels.
- Up to 15 Clerks or Cashiers with Separate Report Totals.
- Four Tax Rates or Tax Tables Plus Value Added Tax (VAT) Capability.
- Standard RS-232C Port for PC Communications or External Devices.
Specifications
| Keyboard: | 15 Programmable Keyboard PLUs Expandable to 40 |
| Display- Operator: Customer: |
Blue Fluorescent Display, 10 Digits Pop-Up Turret Display, 10 Digits |
| Printer- Type: Model: Speed: |
21 Column, Receipt and Journal Epson M-U420 3 Lines Per Second |
| Paper Roll: | 44mm x 76mm |
| Inking Supply: | ERC-32 Ribbon Cartridge |
| Dimensions (WxDxH): | 15-3/4″W x 17-3/4″D x 12-1/8″H |
| Shipping Weight: | 33.55 lbs. |
| Power Requirements: | 120V AC ± 10%, 50/60 Hz |
| Power Consumption: | 0.4 Amps |
| Operation Temperature: | 32°~113°F (0°~45°C) |
| Humidity Range: | 10% to 90% RH |
| Memory Protection Battery: | Full Charge for 24 Hours Will Protect Memory for Approximately 90 Days |
Documents
- PRODUCT BROCHURE
- User Manual Sam4s ECR ER-5115II
